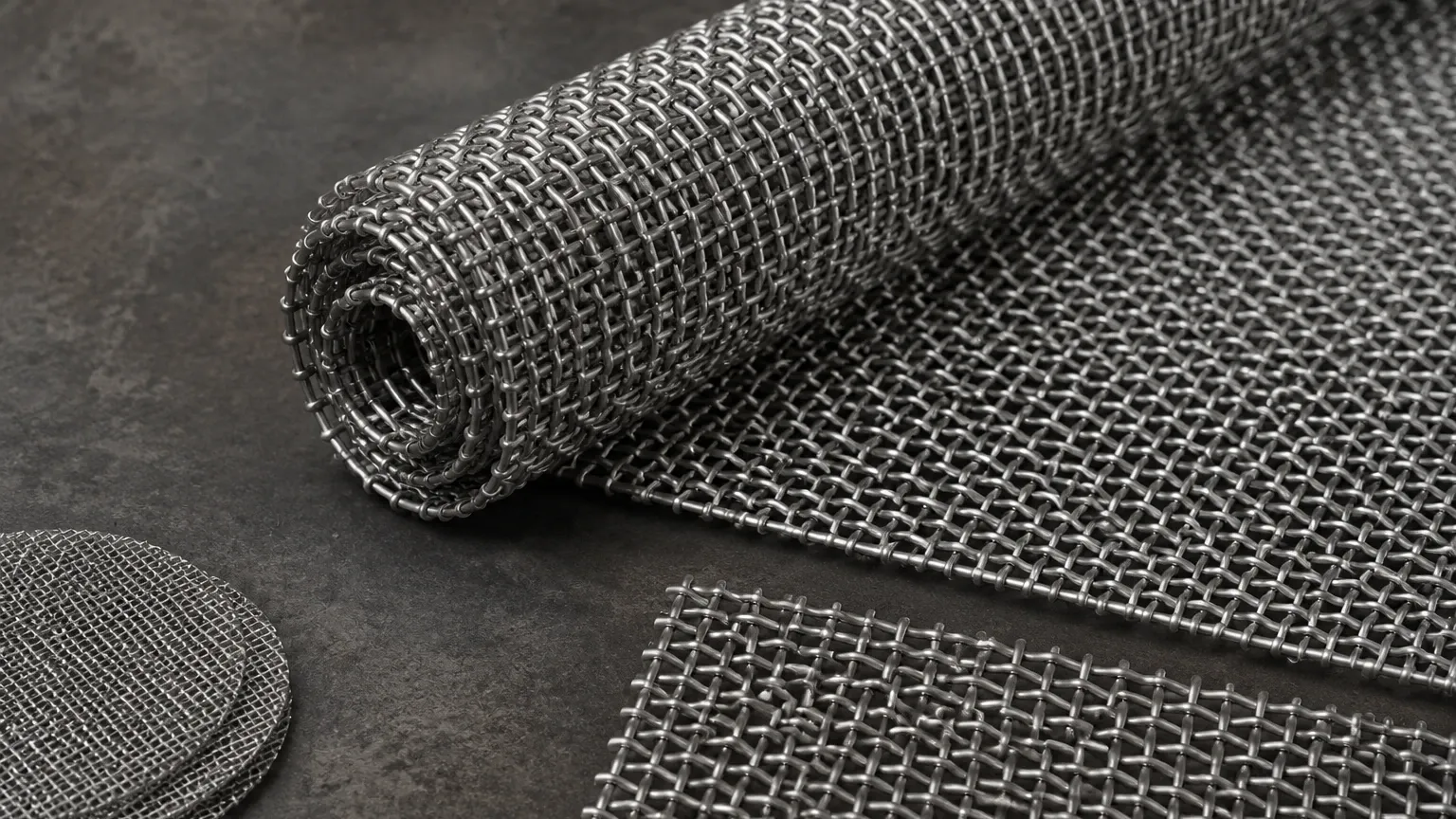

10mm Woven Wire Mesh
In the landscape of industrial filtration and separation, the precision of the medium determines the efficiency of the entire process. While fine micron-rated meshes are essential for polishing fluids and gas filtration, coarse specifications like 10mm woven wire mesh serve as the backbone for heavy-duty screening, primary separation, and structural support. Choosing the right configuration of a 10mm aperture mesh requires a deep understanding of wire diameters, material properties, and the mechanical stresses inherent in industrial environments.
This guide explores the engineering considerations, material selection, and performance metrics associated with 10mm woven wire mesh to assist procurement teams and engineers in making informed technical decisions.
Understanding 10mm Woven Wire Mesh Specifications
When discussing Woven Wire Mesh, the term "10mm" typically refers to the clear opening or aperture—the distance between two adjacent warp or weft wires. Unlike fine meshes where "mesh count" (the number of openings per linear inch) is the primary descriptor, coarse meshes are defined by their aperture size and wire diameter.
The Relationship Between Aperture and Pitch
The pitch is the center-to-center distance between wires. For a 10mm aperture mesh, the pitch is calculated as 10mm plus the wire diameter. This relationship is critical for calculating the "Open Area Percentage," which directly influences flow rates and throughput.
For example:
* Light Duty: 10mm aperture with 1.5mm wire results in an 11.5mm pitch and approximately 75% open area.
* Heavy Duty: 10mm aperture with 3.0mm wire results in a 13mm pitch and approximately 59% open area.
Engineers must balance the need for high throughput (larger open area) with the requirement for structural rigidity and wear resistance (thicker wire).
Material Selection: Why Stainless Steel Dominates
Industrial environments often expose filtration components to corrosive chemicals, high temperatures, and mechanical abrasion. Consequently, the choice of alloy is as important as the physical dimensions of the mesh.
Grade 304 Stainless Steel
SS304 is the standard for most industrial applications. It offers excellent resistance to atmospheric corrosion and is suitable for most food processing and general manufacturing environments. It provides a cost-effective balance of durability and workability.
Grade 316L Stainless Steel
For applications involving chlorides, marine environments, or highly acidic chemical processing, SS316L is the preferred choice. The addition of molybdenum enhances pitting resistance. In the context of 10mm woven wire mesh used in wastewater treatment or chemical reactors, 316L ensures a significantly longer service life, reducing the total cost of ownership despite the higher initial material cost.
Specialty Alloys
In extreme cases involving high-temperature oxidation or specific chemical catalysts, alloys such as Monel, Inconel, or Duplex stainless steel may be specified. These are typically reserved for specialized petrochemical or aerospace applications where standard grades would fail prematurely.
Engineering Considerations: Weave Types and Stability
For a 10mm aperture, the most common weave style is the Plain Weave. In this configuration, each warp wire passes alternately over and under each weft wire. This produces a stable, consistent opening that is easy to clean and maintain.
However, for very heavy wire diameters relative to the aperture, a Pre-Crimped Weave may be utilized. In this process, the wires are crimped before being woven together. This technique ensures that the wires remain locked in place even under intense vibration, such as in mining or aggregate screening. For standard industrial filtration and architectural uses, the precision of Plain, twill and dutch woven wire mesh in SS304/316L — rolls, cut mesh and framed panels. Send mesh count or micron target for a technical quote. provides the necessary accuracy for consistent particle separation.
Common Industrial Applications
10mm woven wire mesh is utilized across diverse sectors, often serving as the first line of defense in a multi-stage filtration system.
1. Mining and Aggregate Processing
In the extraction industries, 10mm mesh is used to grade ores and minerals. It must withstand the constant impact of heavy materials. Here, the focus is on abrasion resistance and the ability to maintain aperture integrity under high-frequency vibration.
2. Chemical and Petrochemical Filtration
Large-scale reactors often use 10mm mesh as a support grid for catalyst beds or finer mesh layers. The mesh provides the structural strength to hold significant weight while allowing for high-volume fluid or gas flow with minimal pressure drop.
3. Food and Beverage Industry
In the initial stages of processing raw agricultural products, 10mm screens are used to remove large debris, stones, or stalks. Stainless steel is mandatory here to meet hygiene standards and withstand rigorous Clean-in-Place (CIP) cycles.
4. Architectural and Security Applications
Beyond filtration, the 10mm aperture is aesthetically pleasing and functionally strong for use in security screens, balustrade infill panels, and ventilation grilles. It provides a high level of transparency while maintaining a robust physical barrier.
Key Evaluation Criteria for Procurement
When sourcing 10mm woven wire mesh, technical professionals should evaluate suppliers based on several critical factors to avoid project delays or premature component failure.
* Dimensional Tolerance: Ensure the aperture size is consistent across the entire roll or panel. Inconsistent openings lead to "bypass," where oversized particles pass through the screen.
* Surface Finish: For food and pharmaceutical applications, the mesh must be free of burrs, oil residues, and scale. Electropolishing may be required to enhance corrosion resistance and cleanability.
* Edge Treatment: Depending on the installation method, the mesh may require welded edges, hooked edges for tensioning, or framed borders. Specifying this early prevents installation difficulties.
* Flatness: For panels used in vibrating equipment or architectural facades, the flatness of the mesh is paramount. Residual stresses from the weaving process can cause "oil canning" or bowing if not properly leveled.
Installation and Maintenance Protocols
The longevity of a 10mm woven wire mesh component is heavily dependent on how it is installed and maintained.
Proper Tensioning
In screening applications, insufficient tension is a leading cause of premature failure. If the mesh is allowed to whip or flex excessively, it will succumb to metal fatigue at the contact points. Using proper tensioning bolts and rubber capping strips can significantly extend the mesh's life.
Cleaning Cycles
While 10mm mesh is resistant to clogging compared to finer meshes, "blinding" can still occur if sticky materials or near-sized particles become wedged in the openings. Regular inspection and cleaning—using high-pressure water or ultrasonic baths—ensure the system operates at peak efficiency.
Corrosion Monitoring
Even stainless steel can suffer from crevice corrosion if debris is allowed to accumulate at the wire intersections. Periodic passivation treatments or simple thorough cleaning can prevent the localized breakdown of the protective oxide layer.
Customization and OEM Solutions
Every industrial facility has unique requirements. A standard roll of mesh may not always be the most efficient solution. Customization options often include:
* Custom Slitting and Cutting: Precision-cut circles, rectangles, or complex shapes to fit specific housing units.
* Layered Composites: Sintering or welding the 10mm mesh to a finer mesh to provide both structural support and fine filtration in a single component.
* Fabricated Components: Developing complete filter baskets, cylinders, or framed panels ready for immediate installation.
By working with a manufacturer that understands the nuances of wire mesh engineering, companies can optimize their filtration processes, reduce downtime, and ensure compliance with industry-specific regulations.
Conclusion
Selecting a 10mm woven wire mesh involves more than just picking a hole size. It requires a calculated approach to material science, mechanical engineering, and application-specific demands. Whether used as a primary screen in a mining operation or a support structure in a chemical reactor, the quality of the mesh—defined by its aperture precision, wire durability, and alloy integrity—is fundamental to operational success.
For engineers and purchasing teams, focusing on the total cost of ownership rather than just the initial price point leads to better long-term outcomes. High-quality stainless steel mesh reduces the frequency of replacements and ensures that downstream equipment remains protected from oversized contaminants. When precision and reliability are non-negotiable, technical consultation with filtration experts is the most effective path to an optimized solution.
