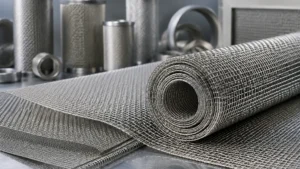

Gi Woven Wire Mesh
In the landscape of industrial filtration and material separation, selecting the appropriate media requires a balance between performance, environmental compatibility, and cost-efficiency. Among the various options available, gi woven wire mesh (galvanized iron woven wire mesh) serves as a versatile and economical solution for applications that demand structural integrity and moderate corrosion resistance. While stainless steel is often the gold standard for high-acid or high-temperature environments, galvanized iron provides a robust alternative for general industrial, agricultural, and construction use.
Understanding the technical nuances of gi woven wire mesh—from the method of galvanization to the weaving patterns—is essential for engineers and procurement specialists. This guide explores the engineering specifications, manufacturing variations, and selection criteria necessary to optimize filtration and screening systems.
Understanding the Composition of GI Woven Wire Mesh
At its core, gi woven wire mesh is manufactured from low-carbon steel wire that has undergone a galvanization process. This process involves coating the base metal with a layer of zinc, which acts as a sacrificial barrier against oxidation. The performance of the mesh is largely determined by the quality of the base wire and the thickness of the zinc coating.
Material Grades and Zinc Coating
The base material is typically a mild steel or low-carbon steel, chosen for its ductility and tensile strength. The zinc coating is the defining feature of galvanized iron. In industrial settings, the coating thickness is measured in grams per square meter (g/m²) or microns. A thicker coating generally translates to a longer service life, especially when exposed to moisture or outdoor elements.
Weaving Techniques
Like other forms of Woven Wire Mesh, the GI variant is produced by interlacing wires in specific patterns. The most common include:
* Plain Weave: Each warp wire crosses alternately over and under each weft wire. This is the most common and cost-effective weave for general screening.
* Twill Weave: Each warp wire passes alternately over and under two weft wires. This allows for a heavier wire diameter to be used with a given mesh count, increasing the strength of the mesh.
* Dutch Weave: Utilizing different wire diameters for warp and weft, this weave creates a dense, strong mesh often used in pressure filtration.
Manufacturing Processes: Electro-Galvanized vs. Hot-Dipped
The method by which the zinc is applied to the wire significantly impacts the mesh's physical properties and its suitability for specific environments. There are two primary methods used in the production of gi woven wire mesh.
Electro-Galvanized (Cold Galvanized)
Electro-galvanization uses an electrolytic cell to deposit a thin, uniform layer of zinc onto the steel wire. This process results in a smooth, bright finish.
* Advantages: Excellent aesthetic appearance, precise wire diameter maintenance, and lower cost.
* Limitations: The zinc layer is relatively thin (usually 10–20 g/m²), making it less suitable for high-moisture or chemically aggressive environments where rapid oxidation might occur.
Hot-Dipped Galvanized
In this process, the wire or the completed mesh is submerged in a bath of molten zinc at temperatures around 450°C (842°F). This creates a metallurgical bond between the zinc and the steel.
* Advantages: Much thicker coating (often 40–200 g/m² or more), providing superior corrosion resistance. The zinc also flows into the intersections of the weave (if galvanized after weaving), effectively "locking" the wires in place.
* Limitations: The finish is often rougher and less uniform than electro-galvanized mesh. There may also be slight variations in aperture size due to the thickness of the zinc buildup.
Galvanized Before Weaving (GBW) vs. Galvanized After Weaving (GAW)
Engineers must also decide between GBW and GAW. GBW mesh is made from wires that were already galvanized. This is more economical but leaves the cut ends of the wire (and sometimes the friction points of the weave) unprotected. GAW mesh is woven first and then dipped into zinc, ensuring that every intersection and cut edge is sealed, which is critical for long-term durability in outdoor or humid applications.
Key Engineering Specifications and Selection Criteria
When specifying gi woven wire mesh for an industrial project, several technical parameters must be confirmed to ensure the component meets the operational requirements of the system.
Mesh Count and Aperture Size
The mesh count refers to the number of openings per linear inch. The aperture (or opening size) is the clear distance between two adjacent wires. For filtration tasks, the aperture size is the most critical factor, as it determines the particle size retention. Engineers must calculate the "open area" percentage to understand the flow rate and pressure drop across the mesh.
Wire Diameter
The diameter of the wire influences the mesh's mechanical strength and its resistance to abrasion. A thicker wire increases the lifespan of the screen but decreases the open area, which can impede flow. Balancing wire diameter with aperture size is a fundamental part of filtration design.
Tensile Strength
For applications involving high-pressure fluids or heavy material loads (such as vibrating screens), the tensile strength of the galvanized wire is paramount. Low-carbon steel provides sufficient flexibility to prevent brittle fracturing under vibration, a common issue with higher carbon alloys.
Comparing GI Mesh with Stainless Steel Alternatives
While gi woven wire mesh is a high-performance material for many sectors, it is important to understand where it stands in relation to stainless steel. Choosing the right material involves a Total Cost of Ownership (TCO) analysis.
Galvanized iron is significantly more affordable than stainless steel, making it the preferred choice for large-scale screening or temporary filtration where the environment is not highly corrosive. However, in pharmaceutical, food processing, or high-acid chemical environments, the zinc coating of GI mesh may react with the media or fail prematurely.
For those requiring higher levels of hygiene and chemical inertness, Plain, twill and dutch woven wire mesh in SS304/316L — rolls, cut mesh and framed panels. Send mesh count or micron target for a technical quote. provides a more durable solution. Stainless steel eliminates the risk of zinc contamination and offers much higher temperature thresholds, which is often a requirement in advanced industrial filtration.
Industrial Applications of GI Woven Wire Mesh
Because of its balance of strength and economy, gi woven wire mesh is utilized across a broad spectrum of industries. Its applications are rarely limited to a single function, often serving as both a structural component and a filtration medium.
1. HVAC and Air Filtration
GI mesh is frequently used as a support layer or a pre-filter in HVAC systems. It protects more delicate filter media from large debris and provides the rigidity necessary to withstand high air velocities without deforming.
2. Agricultural Screening
In the agricultural sector, GI mesh is used for grain drying and sifting. The galvanized coating protects the steel from the moisture inherent in organic materials, while the woven structure allows for precise grading of seeds and grains.
3. Construction and Infrastructure
Used as a reinforcement for plaster (lath) or as safety screening on construction sites, the high tensile strength of the woven structure provides reliable impact resistance. It is also used in window guards and partition screens where visibility and airflow must be maintained alongside security.
4. Petrochemical and Hydraulic Pre-filtration
In hydraulic systems, gi woven wire mesh often serves as a "suction strainer" or a coarse filter to remove large particulates before the fluid reaches high-precision secondary filters. This extends the life of more expensive filtration components.
Maintenance, Lifespan, and Replacement Cycles
The service life of gi woven wire mesh is primarily dictated by the rate of zinc consumption. In a standard dry environment, the zinc oxide layer that forms on the surface is stable and protects the underlying steel for decades. However, in the presence of electrolytes (such as saltwater or acidic rain), the galvanic reaction accelerates.
Signs of Wear
Engineers should monitor for "white rust" (zinc oxidation) and "red rust" (iron oxidation). White rust is often superficial, but red rust indicates that the protective zinc layer has been compromised and the structural integrity of the wire is at risk.
Replacement Considerations
In filtration applications, replacement cycles are usually determined by "blinding" (clogging of the apertures) rather than corrosion. If the mesh cannot be effectively backwashed or cleaned without damaging the wire, replacement is necessary. Because GI mesh is cost-effective, it is often treated as a semi-consumable component in high-wear industrial processes.
Customization and Procurement Guidance
When sourcing gi woven wire mesh, providing a manufacturer with precise technical data ensures that the final product performs as expected. Standard off-the-shelf rolls may not meet the tolerances required for specialized industrial equipment.
Key information to confirm with a supplier like Kaifil includes:
* Exact Mesh Count: (e.g., 20×20 mesh, 40×40 mesh).
* Wire Gauge: Specified in mm or SWG/AWG.
* Galvanization Type: Specify Hot-Dipped if the application is outdoors or in a high-humidity zone.
* Dimensional Requirements: Specify if the mesh is needed in bulk rolls, cut-to-size pieces, or framed panels.
* Edge Treatment: For safety and ease of installation, specify whether the mesh should have raw edges, hemmed edges, or be welded into a frame.
By focusing on these technical details, engineering teams can ensure they receive a filtration or screening solution that balances the immediate budget with long-term operational reliability. Whether used as a standalone screen or as part of a complex multi-stage filtration system, gi woven wire mesh remains a fundamental material in modern industrial engineering.
