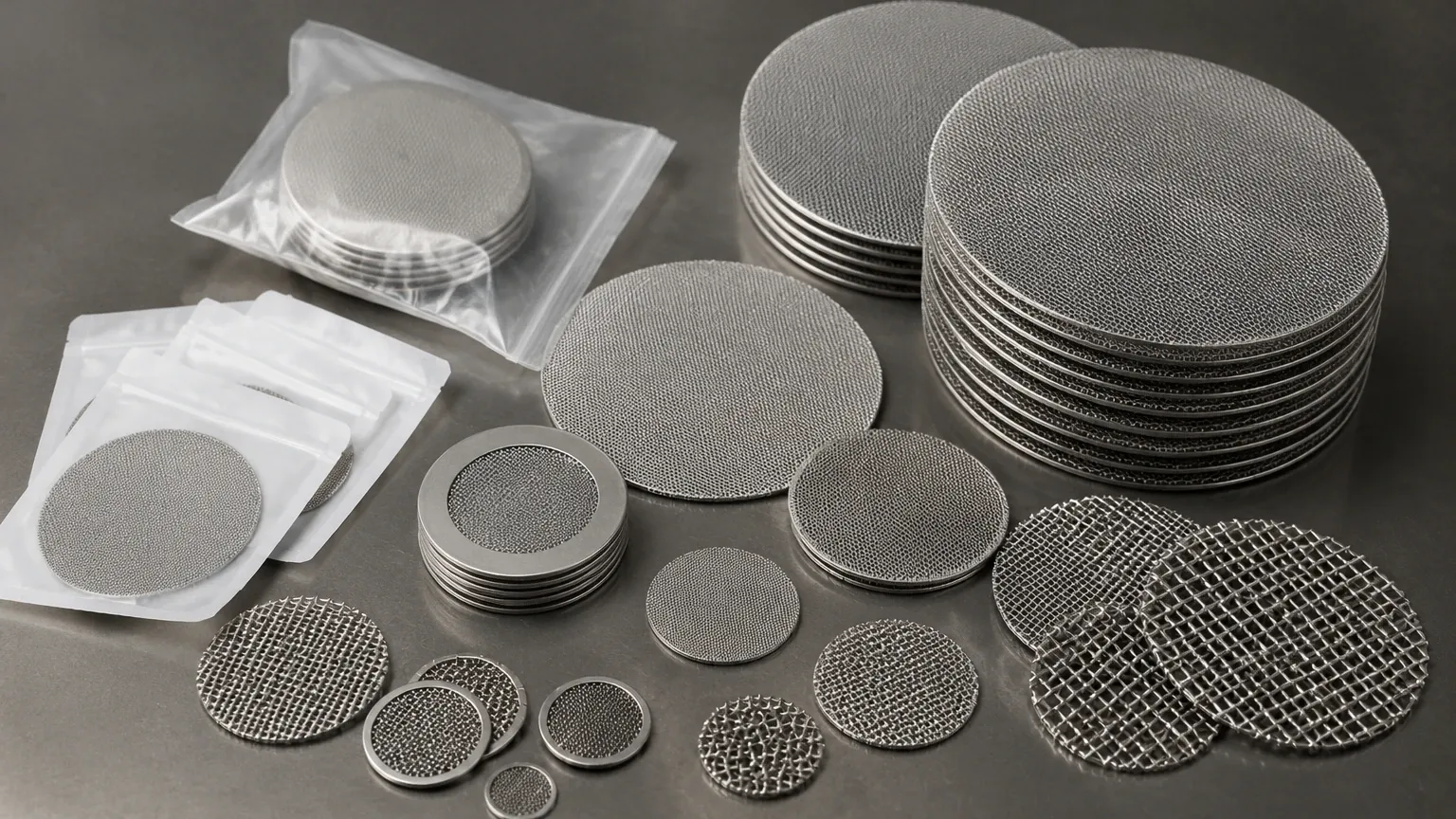

Black Silk Filter Packs
In the demanding field of industrial extrusion and polymer processing, the efficiency of a production line often hinges on the quality of its filtration components. Among the various configurations used to purify molten materials, black silk filter packs—constructed from low-carbon steel wire mesh—remain a critical standard for high-volume, cost-effective filtration. These components are engineered to withstand extreme pressures and temperatures while ensuring that contaminants, gels, and foreign particles are removed from the melt flow before they can reach delicate downstream equipment like spinnerets or extrusion dies.
For engineers and procurement professionals, selecting the appropriate Filter Discs & Packs requires a deep understanding of material science, weave geometry, and the specific rheological properties of the medium being filtered. This guide examines the technical specifications, application advantages, and engineering considerations of black silk filter packs within the broader context of industrial filtration systems.
Understanding the Composition and Material Properties
The term "black silk" in an industrial context does not refer to textile fibers but rather to low-carbon steel wire cloth, often called black wire mesh. The name originates from the fine, silk-like appearance of the high-mesh-count weaves and the dark finish of the steel. Unlike stainless steel, which contains high levels of chromium and nickel to resist oxidation, black silk filter packs are manufactured from high-quality carbon steel.
Material Strength and Thermal Stability
Low-carbon steel provides excellent tensile strength and thermal stability. In extrusion processes where temperatures can exceed 300°C (572°F), the material maintains its structural integrity. While it lacks the corrosion resistance of 304 or 316 stainless steel, it is highly compatible with non-corrosive polymers and chemical processes where the cost-to-performance ratio is a primary concern.
Weave Types and Filtration Accuracy
Black silk filter packs are available in various weave patterns, each offering different performance characteristics:
* Plain Weave: The most common configuration, where each warp wire crosses over and under each weft wire. This provides a uniform aperture size and is ideal for general-purpose filtration.
* Dutch Weave: This involves using a heavier warp wire and a finer weft wire, resulting in a much denser mesh. Dutch weaves provide superior strength and finer filtration ratings, often required for high-pressure polymer melts.
* Twilled Weave: Used for finer mesh counts, this weave allows for thicker wires to be used for a given mesh size, increasing the pack's durability.
Engineering Design of Filter Discs & Packs
Industrial filtration rarely relies on a single layer of mesh. Instead, black silk filter packs are typically designed as multi-layered assemblies to optimize flow and dirt-holding capacity. These assemblies are a subset of the broader category of Filter Discs & Packs, customized to meet specific mechanical requirements.
Multi-Layer Configurations
A standard filter pack often utilizes a "sandwich" structure. For example, a five-layer pack might consist of a coarse support mesh, a medium-fine transition mesh, a fine filtration layer, another transition mesh, and a final coarse support layer. This graduated density ensures that larger particles are trapped by the outer layers, preventing the fine internal mesh from blinding prematurely. This design significantly extends the service life of the pack and maintains a more stable pressure drop across the system.
Binding and Spot Welding
To ensure the integrity of the pack under the high-pressure environment of an extruder, the layers must be securely fastened. There are two primary methods:
1. Spot Welding: The layers are welded at multiple points. This is cost-effective and suitable for applications where the pack is held firmly within a recessed breaker plate.
2. Rimming (Binding): The edges of the mesh layers are encased in a metal rim, typically made of aluminum, copper, or stainless steel. Rimming provides several technical advantages: it prevents bypass (leakage around the edges), adds structural rigidity, and makes the packs easier to handle and install without risk of fraying.
Critical Applications in Extrusion and Recycling
Black silk filter packs are the workhorse of the plastics and rubber industries. Their specific material properties make them particularly suited for several high-demand applications.
Polymer Melt Filtration
In the production of virgin polymers, maintaining a consistent melt quality is paramount. Black silk packs are used to remove "gels" (partially cross-linked polymers) and any residual catalysts. Because these processes are often continuous, the reliability of the filter pack directly impacts the uptime of the entire facility.
Plastic Recycling and Reclaiming
The recycling industry presents one of the harshest environments for filtration. Post-consumer plastic waste often contains high levels of contaminants, such as paper, metal fragments, and higher-melting-point polymers. Black silk filter packs are preferred here due to their low cost. Since the contamination levels require frequent filter changes, using expensive stainless steel would be economically unviable. The high strength of the carbon steel mesh allows it to withstand the significant pressure spikes that occur as the filter becomes loaded with debris.
Masterbatch and Chemical Fiber Production
For the production of color concentrates (masterbatches) and chemical fibers (like polyester or nylon), filtration must be exceptionally fine. Any impurity can cause a break in the fiber or a visible defect in the final molded product. Multi-layer black silk packs provide the depth filtration necessary to ensure a homogeneous and pure output.
Selection Criteria for Industrial Engineers
Choosing the right black silk filter packs involves more than just selecting a diameter and a mesh count. Engineers must evaluate several variables to ensure optimal performance and cost-efficiency.
Pressure Drop (Delta P)
The resistance to flow created by the filter pack is a critical metric. A pack that is too dense will cause an excessive pressure drop, forcing the extruder motor to work harder and potentially increasing the melt temperature due to shear stress. Conversely, a pack that is too coarse will fail to protect the downstream equipment. Engineers must balance the micron rating with the available surface area.
Contaminant Loading Capacity
This refers to the amount of debris a filter can hold before the pressure drop reaches a critical threshold (the "terminal pressure"). Multi-layer designs with coarse pre-filtration layers significantly improve loading capacity compared to single-layer discs.
Chemical Compatibility
While black silk is suitable for many polymers, it is susceptible to oxidation if exposed to moisture or corrosive additives. In applications involving PVC or certain fluoropolymers that release acidic gases during processing, stainless steel alternatives may be required. However, for standard polyolefins (PE, PP) and polystyrene, black silk is the industry standard.
Quality Control and Manufacturing Standards
The performance of a filter pack is only as good as the consistency of its weave. In high-precision manufacturing, even a small deviation in wire diameter or aperture size can lead to "channeling," where the melt flow bypasses the intended filtration path.
Weave Consistency
Quality manufacturers utilize automated weaving and cutting processes to ensure that every disc in a batch is identical. For black silk, ensuring the wire is free from surface defects and that the annealing process has been uniform is essential for preventing wire breakage during the high-pressure extrusion process.
Customization and OEM Specifications
Most industrial extruders require specific dimensions and configurations. Customization options include:
* Variable Diameters: From small 10mm discs for laboratory extruders to large 500mm+ packs for industrial recycling lines.
* Shape Variations: While circular discs are standard, oval, rectangular, and kidney-shaped packs are often required for specific screen changer designs.
* Layer Count: Tailoring the number of layers to the specific viscosity of the resin and the desired purity level.
Total Cost of Ownership and Replacement Cycles
In a B2B procurement context, the unit price of a filter pack is only one component of the total cost of ownership (TCO). Engineers must also consider the cost of downtime and the labor required for filter changes.
Disposable vs. Cleanable
Black silk filter packs are generally considered disposable. Due to the low cost of carbon steel and the difficulty of removing embedded polymer from fine mesh, it is usually more economical to replace the pack than to attempt cleaning. This is in contrast to some high-end stainless steel or sintered metal filters which may be cleaned via pyrolysis or ultrasonic baths.
Optimizing Change-Over Intervals
By analyzing the rate of pressure increase, maintenance teams can determine the optimal time to change the filter packs. Changing them too early wastes material; changing them too late risks mechanical failure or product contamination. The consistency of high-quality black silk packs allows for predictable replacement schedules, which is vital for lean manufacturing operations.
Technical Support and Procurement
When sourcing filtration components, partnering with a manufacturer that understands the nuances of industrial applications is essential. Kaifil provides a comprehensive range of custom stainless steel and metal filtration solutions, including precision-engineered Filter Discs & Packs. By working closely with global customers, Kaifil ensures that every filtration component—from material selection to final assembly—meets the rigorous demands of the chemical, pharmaceutical, and industrial sectors.
For engineers looking to optimize their filtration processes, confirming the specific mesh counts, layer sequences, and binding materials is the first step toward achieving a more stable and efficient production line. Whether the application involves standard polymer extrusion or complex recycling challenges, the right black silk filter pack configuration serves as a fundamental safeguard for both product quality and equipment longevity.
