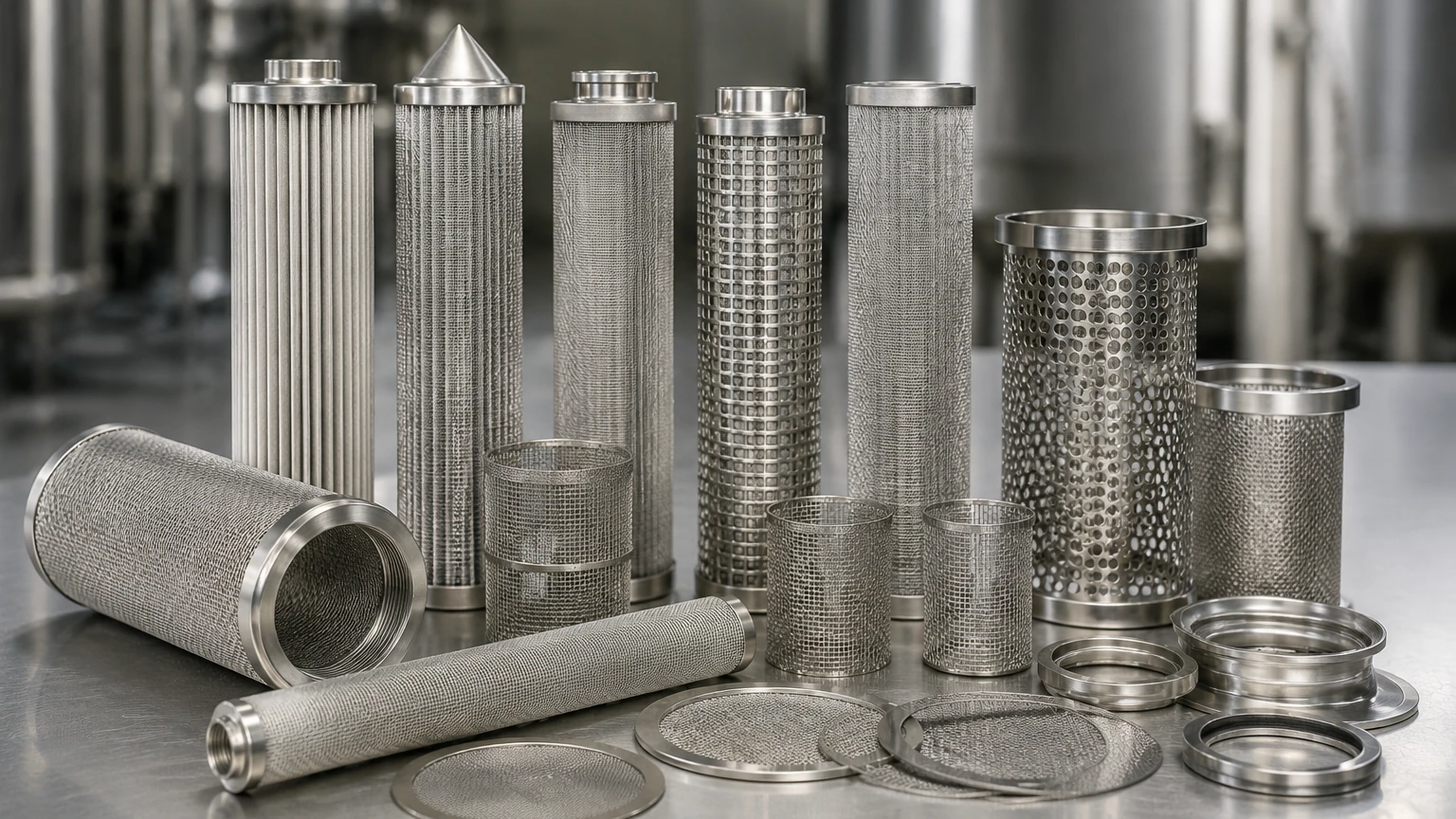

In the landscape of industrial manufacturing, particularly within the food, beverage, dairy, and pharmaceutical sectors, hygiene is not merely an operational preference but a stringent regulatory necessity. Among the various frameworks governing equipment design, the 3 a Sanitary Standards (3-A SSI) represent the gold standard for ensuring that equipment is designed, fabricated, and installed in a manner that protects public health. For engineers and procurement specialists sourcing stainless steel filtration components, understanding the nuances of these standards is critical to ensuring process integrity and product safety.
Industrial filtration systems often serve as the final barrier against contaminants. However, if the filter housing or the element itself is poorly designed, it can become a breeding ground for bacteria or a source of cross-contamination. This guide examines the technical requirements of 3-A standards as they apply to stainless steel filters and provides actionable insights for selecting compliant filtration solutions.
Understanding the Role of 3-A Sanitary Standards in Industrial Filtration
The 3-A Sanitary Standards, Inc. (3-A SSI) is a non-profit organization dedicated to advancing hygienic equipment design. The "3-A" designation originally referred to the three interest groups that collaborated to create the standards: processors, regulatory sanitarians, and equipment fabricators. Today, these standards are recognized globally as a benchmark for equipment used in the production of food, milk, and other consumable products.
In the context of filtration, 3-A standards focus on the "cleanability" of the equipment. A filter may be highly efficient at removing particles, but if its internal structure contains "dead legs" or rough surfaces where organic material can accumulate, it fails the sanitary test. The primary objective of 3-A design is to ensure that all product contact surfaces can be mechanically cleaned (Clean-in-Place or CIP) or easily dismantled for manual cleaning (Clean-Out-of-Place or COP).
For a filtration component to meet 3-A criteria, it must undergo Third Party Verification (TPV). This independent audit ensures that the manufacturer’s design and production processes adhere to the specific requirements of the relevant 3-A standard, such as Standard 10-04 for filters using a permanent filtering medium.
Engineering Requirements for 3-A Compliant Stainless Steel Filters
Designing a filter for a 3-A environment requires a departure from standard industrial engineering practices. The focus shifts from purely mechanical performance to a combination of performance and hygiene. Several key engineering considerations define a 3-A compliant filter.
Internal Radii and Geometry
One of the most critical aspects of sanitary design is the elimination of sharp corners. In a 3-A compliant filter housing, all internal angles must have a minimum radius. Typically, for product contact surfaces, a minimum radius of 1/8 inch (3.18 mm) is required. This ensures that cleaning solutions can reach every part of the surface and that there are no crevices where bacteria can hide.
Weld Quality and Finishing
Welding in sanitary filtration is a high-precision task. All welds on product contact surfaces must be continuous, smooth, and ground flush with the base metal. There can be no pits, cracks, or inclusions. In many cases, orbital welding is preferred for its consistency and ability to produce a smooth internal bead. After welding, the surfaces are often electropolished to achieve the required smoothness.
Elimination of Threads in Product Zones
Standard industrial filters often use threaded connections for ease of assembly. However, 3-A standards strictly prohibit or severely limit the use of exposed threads in the product zone. Threads are nearly impossible to clean effectively and are notorious for harboring bio-films. Instead, sanitary filters utilize Tri-Clamp (TC) fittings or other hygienic flange designs that use gaskets to create a flush, crevice-free seal.
Material Integrity: Selecting Stainless Steel for Hygienic Applications
Material selection is the foundation of any 3-A compliant filtration system. The standards specify which materials are permissible for product contact surfaces to prevent corrosion and leaching.
Stainless Steel Grades
The most common materials used are AISI 300 series stainless steels. Type 304 is often the minimum requirement, but Type 316L (low carbon) is the industry standard for more demanding applications. 316L contains molybdenum, which provides superior resistance to pitting and crevice corrosion, particularly in environments involving chlorides or acidic cleaning agents. For engineers, specifying 316L ensures a longer service life and better resistance to the aggressive chemicals used during CIP cycles.
Elastomers and Gaskets
While the filter body and mesh are metal, the seals and gaskets must also comply with 3-A standards (specifically Standard 18-03). Common materials include EPDM, Silicone, and Viton (FKM). These materials must be non-toxic, non-absorbent, and capable of withstanding high temperatures and chemical exposure without degrading or losing their sealing properties. During procurement, it is essential to verify that the elastomer used is compatible with both the process fluid and the cleaning chemicals.
The Importance of Surface Finish and Ra Values in Sanitary Design
Surface finish is perhaps the most discussed technical specification in sanitary filtration. It is measured in Ra (Roughness Average), which represents the average height of the peaks and valleys on the metal surface.
For a filter to be considered 3-A compliant, the product contact surfaces must generally have a finish of 32 micro-inches Ra (0.8 micrometers) or smoother. A smoother surface is easier to clean because there are fewer microscopic "valleys" where proteins or bacteria can adhere.
To achieve this, manufacturers use various methods:
1. Mechanical Polishing: Using abrasive belts or wheels to physically smooth the metal.
2. Electropolishing: An electrochemical process that removes a thin layer of material from the surface. This not only reduces the Ra value but also passivates the steel, enhancing its corrosion resistance by increasing the chromium-to-iron ratio on the surface.
Engineers should request surface finish certifications to ensure that the supplied components meet the specified Ra requirements. For highly sensitive pharmaceutical or biotech applications, even smoother finishes (e.g., 15-20 Ra) may be required.
Operational Considerations: Clean-in-Place (CIP) and Maintenance
The primary operational benefit of 3-A filtration is the ability to perform Clean-in-Place (CIP) procedures. CIP involves circulating cleaning liquids through the system at high velocities without dismantling the equipment.
CIP Compatibility
A 3-A filter must be designed so that the cleaning solution can reach all parts of the filter element and housing. This includes the support structures for the wire mesh or sintered metal. If the filter design creates "shadows" or areas of low flow, the CIP process will be ineffective, necessitating frequent manual teardowns.
Replacement Cycles
Even the highest quality stainless steel filter cartridges have a finite lifespan. In a sanitary environment, the replacement cycle is often determined not just by pressure drop (differential pressure) but by the integrity of the filter medium. Over time, repeated CIP cycles and thermal shocks can cause fatigue in the wire mesh. Regular inspection is required to ensure that no wires have broken, which could introduce metal fragments into the product stream or create un-cleanable areas.
For those looking to explore specific product configurations and how they integrate into these high-standard environments, visiting the Kaifil Main Page offers a comprehensive look at available filtration technologies and engineering support.
Assessing Custom Filtration Solutions for Regulatory Compliance
Off-the-shelf filters often fail to meet the specific spatial or flow requirements of a specialized production line. This is where custom stainless steel filtration solutions become necessary. When commissioning a custom 3-A compliant filter, engineers must provide detailed specifications to the manufacturer.
Key information to confirm includes:
* Flow Rate and Viscosity: To ensure the filter housing and element are sized correctly to prevent excessive pressure drop.
* Filtration Accuracy (Micron Rating): Determining the balance between particle retention and cleaning efficiency.
* Connection Types: Specifying Tri-Clamp or other sanitary fittings that match the existing piping.
* Documentation Requirements: Ensuring the manufacturer can provide Material Test Reports (MTRs), Weld Maps, and Surface Finish Certificates.
Working with a manufacturer that understands the intersection of filtration physics and sanitary design is vital. The goal is to create a component that performs its primary task—removing contaminants—without introducing new risks into the process.
Identifying and Mitigating Risks in Sanitary Filtration Procurement
Procuring filtration equipment for a 3-A environment carries significant responsibility. Failure to ensure compliance can lead to product recalls, regulatory fines, and damage to brand reputation.
Common Risks
1. Non-Compliant Materials: Using lower-grade stainless steel that corrodes over time, leading to metal contamination.
2. Poor Weld Quality: Internal pits in welds that harbor bacteria, which cannot be reached by CIP chemicals.
3. Counterfeit Marks: Using equipment that claims 3-A compliance but has not undergone the mandatory Third Party Verification.
4. Incompatible Elastomers: Gaskets that swell or degrade when exposed to specific process fluids, leading to leaks or contamination.
Verification Steps
To mitigate these risks, the purchasing team should verify the manufacturer's credentials. This includes checking the 3-A SSI online database to confirm that the manufacturer holds a current authorization for the specific standard. Additionally, requesting a "quality pack" for each filter—containing weld logs, polishing logs, and material certifications—is a standard industry practice that ensures accountability.
Conclusion
The 3 a Sanitary Standards are more than just a set of rules; they are a comprehensive design philosophy centered on safety and cleanability. For industrial filtration, this means every weld, every radius, and every surface finish must be executed with precision. By adhering to these standards, manufacturers can ensure that their filtration processes are not only efficient but also inherently safe for the end consumer.
Whether you are designing a new dairy processing line or upgrading a pharmaceutical filtration system, prioritizing 3-A compliance is an investment in long-term operational reliability. For engineers seeking to optimize their systems with high-performance, durable filtration components, the focus should remain on technical excellence and a deep understanding of hygienic engineering principles.
