Lube Oil Filter
In industrial machinery and high-performance power systems, the lubrication system is often described as the lifeblood of the equipment. Its primary role is to reduce friction, dissipate heat, and transport contaminants away from critical moving parts. However, the effectiveness of the lubricant is entirely dependent on its cleanliness. A high-quality lube oil filter serves as the primary defense mechanism against premature component wear, system downtime, and catastrophic mechanical failure.
For engineers and procurement professionals, selecting the correct filtration solution requires a deep understanding of fluid dynamics, material science, and the specific operational environment of the machinery. This guide examines the technical considerations, engineering parameters, and performance expectations associated with industrial lube oil filtration, with a focus on durable, high-precision stainless steel solutions.
The Role of Filtration in Industrial Lubrication Systems
Lubrication systems are closed-loop environments, but they are not immune to contamination. Contaminants enter the system through several avenues: built-in debris from the manufacturing process, ingression through seals and breathers, and internally generated wear particles. Without an effective lube oil filter, these particles—often ranging from 5 to 50 microns—circulate through the system, causing abrasive wear on bearings, gears, and cylinder walls.
Industrial applications, such as those found in chemical processing, power generation, and hydraulic systems, demand filtration that can withstand high pressures and varying temperatures while maintaining consistent pore sizes. Unlike standard automotive filters, industrial-grade filters must often handle high-viscosity fluids and maintain structural integrity over long service intervals. For technical teams evaluating these components, the goal is to achieve a balance between high filtration efficiency and low resistance to flow.
Technical Selection Criteria for Lube Oil Filters
When specifying a lube oil filter for an industrial application, several engineering parameters must be evaluated to ensure the component meets the system's requirements without becoming a bottleneck.
Micron Rating and Filtration Accuracy
Industrial filters are categorized by their micron rating, which defines the size of particles they are designed to capture. It is essential to distinguish between nominal and absolute ratings. A nominal rating indicates the filter's ability to capture a percentage of particles of a certain size, whereas an absolute rating (often associated with stainless steel wire mesh) indicates that no particle larger than the specified micron size can pass through the media. For critical bearing lubrication, absolute filtration is often preferred to prevent "silt-sized" particles from causing surface fatigue.
Flow Rate and Viscosity Considerations
The flow rate of the lubrication system determines the required surface area of the filter element. Lube oils vary significantly in viscosity based on their ISO VG grade and operating temperature. Cold starts, for instance, involve much higher viscosity than steady-state operation. If the filter is undersized or the media is too restrictive, the resulting pressure drop (ΔP) can trigger bypass valves, allowing unfiltered oil to reach the machinery, or in extreme cases, cause the filter element to collapse.
Pressure and Temperature Limits
In hydraulic and heavy-duty industrial systems, lube oil filters must operate under significant pressure. Stainless steel filter cartridges are frequently specified for these environments because they offer superior mechanical strength compared to cellulose or synthetic media. They can withstand high differential pressures and remain stable in high-temperature applications where synthetic binders in disposable filters might degrade.

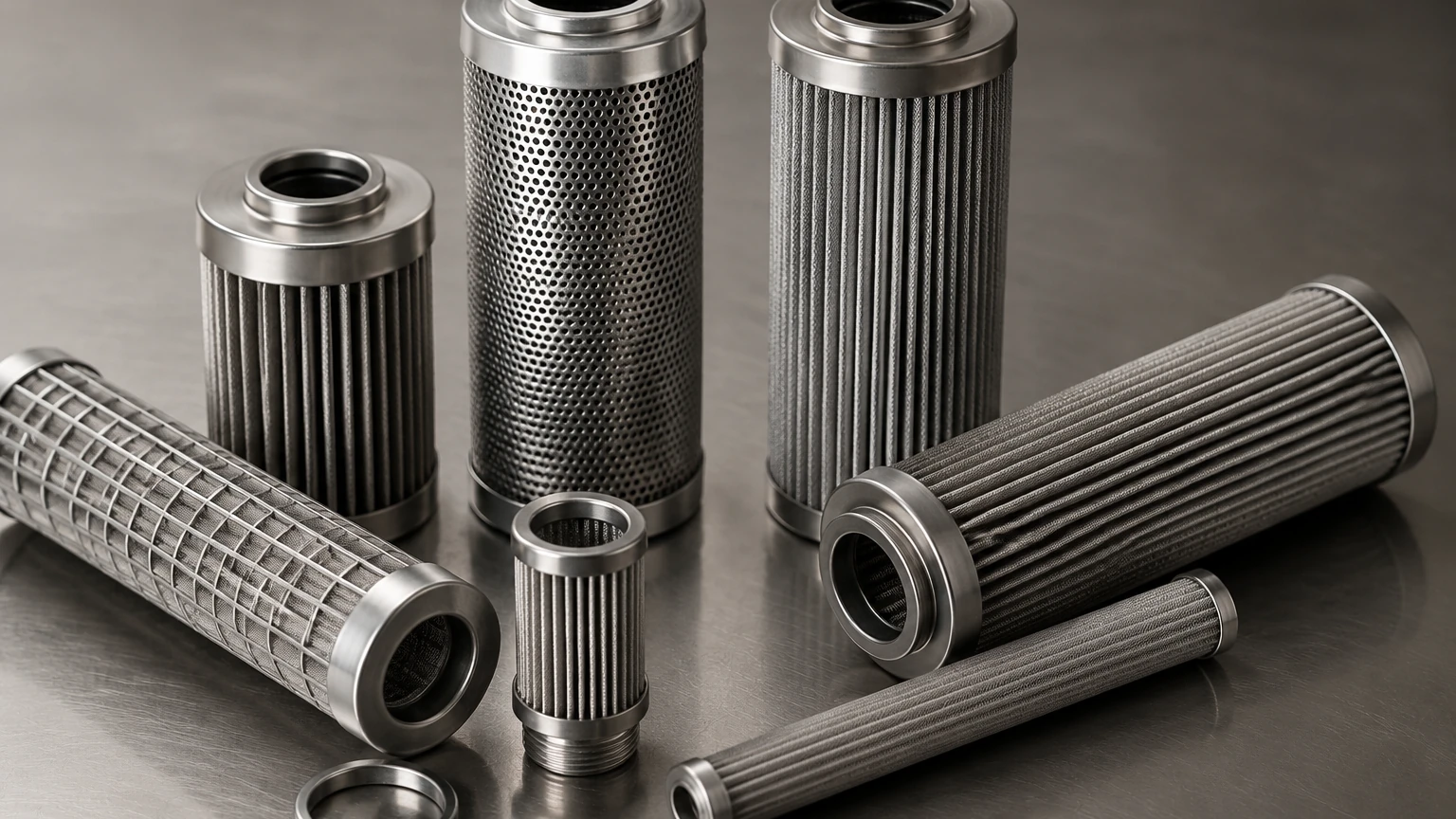

Material Engineering: The Advantages of Stainless Steel
In demanding B2B environments, the choice of filter material is a critical factor in the total cost of ownership (TCO). While disposable paper or fiberglass filters have lower initial costs, stainless steel filtration solutions provide long-term technical advantages.
1. Chemical Compatibility: Stainless steel (typically 304 or 316L) is resistant to a wide range of additives found in modern synthetic and mineral oils. It does not react with acidic combustion byproducts or specialized chemical lubricants.
2. Cleanability and Reusability: One of the primary benefits of stainless steel wire mesh filters is that they can be cleaned and returned to service. Through ultrasonic cleaning or backwashing, the accumulated contaminants are removed, restoring the original flow characteristics. This reduces waste and long-term procurement costs.
3. Structural Integrity: Under high-pressure surges or "cold start" conditions, stainless steel media does not migrate or shed fibers into the oil stream, a common risk with lower-quality depth media.
4. Precision Weave: Advanced manufacturing allows for precise control over the weave patterns (such as plain, twilled, or Dutch weave), ensuring that the filtration accuracy remains consistent across the entire surface of the element.
For organizations looking to optimize their filtration hardware, reviewing professional manufacturing capabilities is essential. You can Review product options and application support to understand how customized stainless steel components can be integrated into existing lubrication circuits.
Understanding Filtration Efficiency and the Beta Ratio
To objectively compare the performance of a lube oil filter, engineers use the Beta Ratio ($eta$), derived from Multi-Pass Testing (ISO 16889). The Beta Ratio is the number of particles of a given size upstream of the filter divided by the number of particles of the same size downstream.
For example, if a filter has a $eta_{10} = 200$, it means that for every 200 particles of 10 microns entering the filter, only one passes through. This equates to 99.5% efficiency. When selecting a filter for high-value assets like gas turbines or large industrial gearboxes, a high Beta Ratio at a low micron level is crucial for maintaining the ISO 4406 cleanliness codes required by equipment manufacturers.
Operational Maintenance and Differential Pressure Monitoring
A lube oil filter is a dynamic component; its performance changes as it captures debris. As the pores of the filter media become restricted, the differential pressure (the difference in pressure between the inlet and the outlet) increases.
Monitoring ΔP
Most industrial filter housings are equipped with differential pressure indicators or transducers. These tools provide real-time data on the state of the filter element. A sudden spike in ΔP may indicate a primary component failure upstream (releasing a large volume of wear debris), while a slow, steady increase indicates normal contaminant loading.
The Role of the Bypass Valve
Many lubrication systems include a bypass valve designed to open when the filter reaches a specific ΔP. This is a safety feature to ensure the engine or machine is never starved of oil. However, operating in bypass mode means the system is running on unfiltered oil. High-quality stainless steel filters are engineered to have a low clean ΔP, providing a wider operational window before the bypass threshold is reached.
Custom OEM Solutions for Specialized Machinery
Standard off-the-shelf filters often fail to meet the specific spatial or performance constraints of specialized industrial equipment. This is where custom manufacturing becomes vital. OEM filtration solutions allow for the optimization of the filter’s geometry, fitting types, and media density to match the exact requirements of a specific pump or motor.
When partnering with a manufacturer like Kaifil, engineers can specify:
* Custom End Caps: Threaded, flanged, or O-ring interfaces to ensure a leak-proof fit.
* Reinforced Cores: Internal support tubes that prevent element collapse under extreme pressure spikes.
* Pleated vs. Cylindrical Designs: Pleating the stainless steel mesh significantly increases the available surface area, allowing for higher flow rates and longer service intervals within the same physical footprint.
Common Risks in Lube Oil Filtration
Failure to properly specify or maintain a lube oil filter can lead to several risks:
* Media Migration: In poor-quality filters, the filter material itself can break down and enter the oil stream, causing the very damage it was intended to prevent.
* Channeling: If the filter media is not structurally sound, high-pressure fluid can create "channels" or holes, allowing unfiltered oil to bypass the media entirely.
* Chemical Degradation: Some synthetic oils contain aggressive additives that can soften or dissolve the adhesives used in standard disposable filters. This is why all-metal, welded stainless steel construction is often required for chemical and pharmaceutical applications.
Conclusion
The selection of a lube oil filter is a critical engineering decision that impacts the reliability and longevity of industrial assets. By moving beyond basic filtration and considering factors such as absolute micron ratings, Beta ratios, and the structural benefits of stainless steel, technical teams can significantly reduce maintenance overhead and prevent unplanned downtime.
Reliable filtration is not just about capturing dirt; it is about maintaining the precise fluid properties required for high-speed, high-load operations. Whether for a hydraulic system, a chemical reactor, or a large-scale power generator, the filter must be viewed as a precision-engineered component. For those seeking technical guidance on material selection or custom filter design, the Main Page provides a comprehensive overview of available technologies and manufacturing capabilities to support demanding industrial applications.
