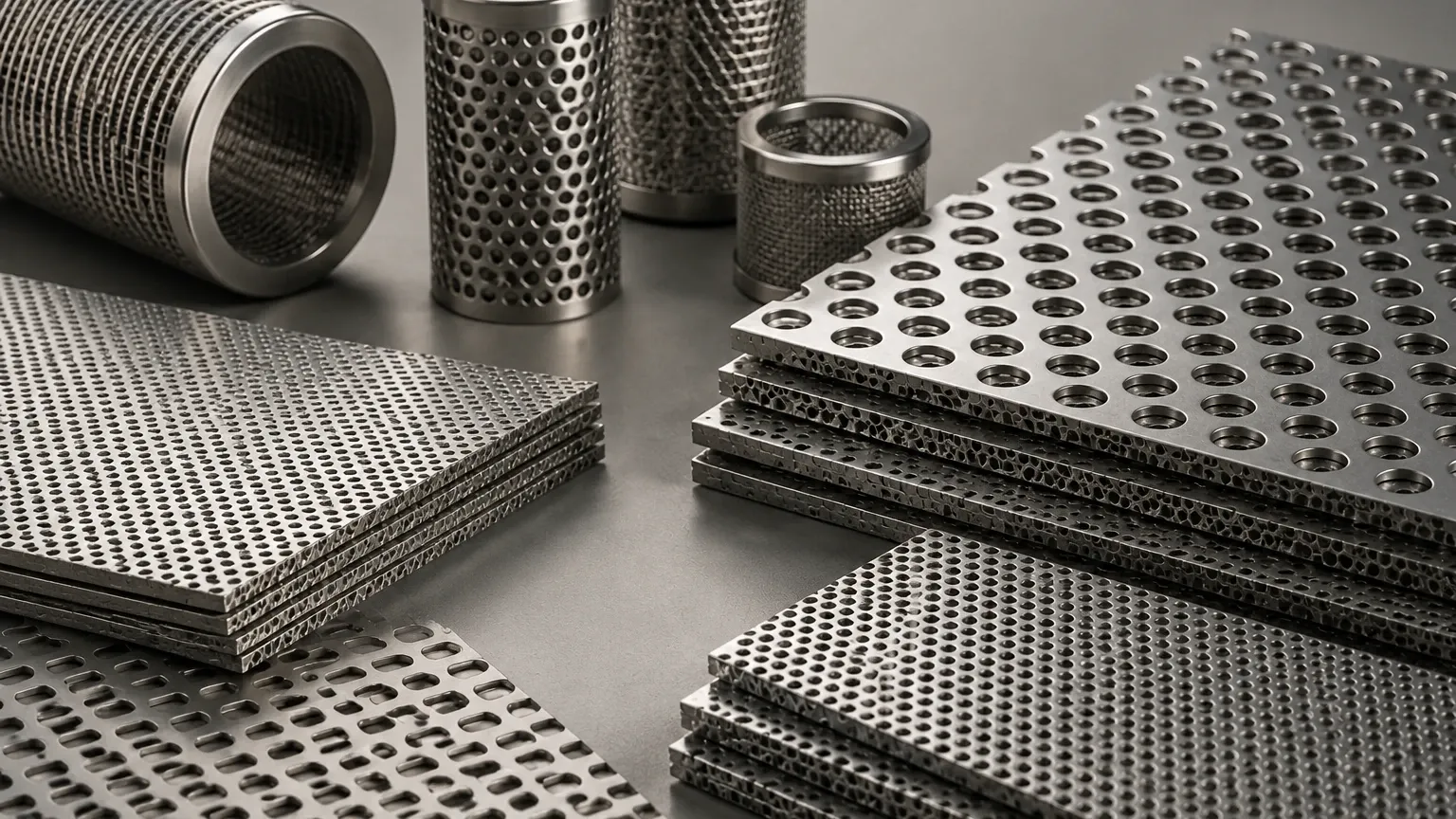

Ketebalan Perforated Metal
In the landscape of industrial filtration and structural engineering, the specification of material dimensions is a critical factor that determines the success of an application. Among these specifications, the thickness of the material—often referred to in technical procurement as ketebalan perforated metal—serves as the foundational variable for mechanical strength, filtration efficiency, and long-term durability. For engineers and purchasing teams sourcing components for chemical processing, food production, or hydraulic systems, understanding the nuances of plate thickness is essential for optimizing performance and managing the total cost of ownership.
At Kaifil, we specialize in the manufacturing of high-precision Perforated & Expanded Metal solutions. This guide provides a technical deep dive into how thickness influences the functionality of perforated components and the engineering considerations necessary for informed selection.
The Engineering Significance of Material Thickness
The thickness of a perforated sheet is not merely a dimensional attribute; it is a primary determinant of the component's structural integrity. In industrial environments where filters are subjected to high-pressure differentials, heavy mechanical loads, or abrasive flow streams, the ketebalan perforated metal must be calculated to withstand these stresses without deformation or failure.
From a manufacturing perspective, thickness dictates the limits of what can be achieved in terms of hole size and pattern density. Generally, the thickness of the base material influences the following performance metrics:
1. Load-Bearing Capacity: Thicker materials provide higher tensile strength and resistance to buckling, making them suitable for heavy-duty screening and structural supports.
2. Pressure Resistance: In filtration systems, the perforated plate often acts as a support for finer wire mesh. The thickness must be sufficient to resist the differential pressure generated as the filter accumulates debris.
3. Vibration Dampening: Thicker plates are less prone to harmonic resonance and vibration-induced fatigue, which is crucial in high-velocity gas or liquid flow applications.
4. Service Life: Increased thickness provides a larger "wear margin" in abrasive environments, extending the interval between replacements.
Technical Standards and Measurement Units
When specifying ketebalan perforated metal, it is important to use standardized units to ensure accuracy between design and production. In the global B2B market, two primary systems are used:
* Metric System (Millimeters): This is the most precise method, commonly used in engineering drawings. Thicknesses typically range from 0.5mm for light-duty filters to 10mm or more for heavy industrial grates.
* Gauge System: Often used in North American markets, the gauge system (such as Birmingham Gauge or Standard Steel Gauge) uses numerical values where a higher number indicates a thinner material. Because gauge measurements vary depending on the material type (e.g., stainless steel vs. aluminum), Kaifil recommends providing the decimal millimeter equivalent to avoid ambiguity.
For most stainless steel filtration applications, thicknesses between 1.0mm and 3.0mm are standard, providing an optimal balance between weight, cost, and structural rigidity.
The Critical Ratio: Hole Diameter vs. Plate Thickness
A fundamental rule in the perforation process is the relationship between the hole diameter (D) and the material thickness (T). For standard mechanical punching, the general engineering guideline is that the hole diameter should not be smaller than the material thickness (D ≥ T). This is often referred to as the 1:1 ratio.
Why the 1:1 Ratio Matters
If the ketebalan perforated metal exceeds the diameter of the punch, the risk of tool breakage increases significantly. The pressure required to shear the metal can exceed the compressive strength of the punch itself. While advanced manufacturing techniques and specialized tool steels allow Kaifil to achieve ratios slightly below 1:1 in specific materials, adhering to this guideline ensures:
* Cleaner Perforations: Reduced burr formation and sharper hole edges.
* Flatness: Thicker plates with small holes are prone to internal stresses that cause the sheet to curl; maintaining the proper ratio helps maintain flatness.
* Cost Efficiency: Avoiding specialized tooling and reducing machine downtime keeps production costs competitive.
In applications requiring extremely fine filtration where the hole size must be smaller than the plate thickness, alternative methods such as laser drilling or chemical etching may be considered, though these are typically reserved for specialized niche requirements.
Material Selection and Its Impact on Thickness Choice
The choice of material goes hand-in-hand with the required thickness. Different alloys exhibit different work-hardening characteristics and mechanical properties during the perforation process.
Stainless Steel (304 and 316L)
Stainless steel is the industry standard for filtration due to its corrosion resistance. However, it is harder than carbon steel. When selecting the ketebalan perforated metal for stainless steel, engineers must account for the material's tendency to work-harden. 316L is preferred in pharmaceutical and marine environments for its superior resistance to pitting corrosion, even at thinner gauges.
Carbon Steel
Carbon steel offers high strength and is more economical than stainless steel. It is often used in thicker gauges for structural components where corrosion is not the primary concern or where the part will be galvanized or coated after perforation.
Aluminum
Aluminum is lightweight and corrosion-resistant but has lower tensile strength. To achieve the same structural rigidity as a stainless steel plate, a thicker aluminum sheet is typically required. This is a vital consideration in weight-sensitive applications like aerospace or mobile hydraulic units.
Impact on Filtration and Flow Dynamics
The ketebalan perforated metal directly affects the fluid dynamics within a system. A thicker plate creates a longer "tunnel" for the fluid to pass through. This can lead to:
* Increased Pressure Drop: Longer hole paths increase frictional resistance, which may require higher pump energy to maintain flow rates.
* Directional Flow: In some designs, the thickness of the plate can be used to help straighten the flow of a liquid or gas before it reaches a secondary filtration stage.
* Particle Retention: While the hole diameter determines the size of the particles blocked, the thickness affects the "cake" formation on the surface of the filter. A thicker plate provides a more stable base for the accumulation of solids in backwashable systems.
When designing a filter cartridge, the perforated metal often serves as the inner core or outer guard. The thickness must be sufficient to prevent the collapse of the cartridge under vacuum or high-pressure conditions, a common failure point in poorly specified hydraulic filters.
Manufacturing Precision and Quality Control
At Kaifil, our manufacturing process for Perforated & Expanded Metal involves rigorous quality control to ensure that the specified thickness is consistent across the entire sheet. Variations in thickness can lead to uneven flow distribution and weak points in the final assembly.
Leveling and Flatness
The punching process naturally introduces stress into the metal, which can cause warping. After perforation, sheets must undergo a leveling process. The thicker the material, the more robust the leveling equipment required to return the sheet to a precision-flat state. This is especially important if the perforated metal is to be rolled into cylinders for filter cartridges.
Deburring and Surface Finish
In food and pharmaceutical applications, the edges of the perforations must be free of burrs and sharp edges. As the ketebalan perforated metal increases, the potential for significant burr formation on the exit side of the punch also increases. Kaifil utilizes advanced deburring and polishing techniques to ensure that even thick-gauge perforated components meet stringent hygienic standards.
Customization and OEM Support
Every industrial application has unique requirements. Kaifil provides extensive customization options for perforated metal, allowing engineers to specify exact thicknesses, hole patterns, and margins. Our OEM capabilities ensure that the components integrate seamlessly into your existing equipment designs.
When consulting with our technical team, it is helpful to provide the following information:
* Primary Application: (e.g., chemical straining, hydraulic support, acoustic dampening).
* Environment: Temperature, chemical exposure, and pressure requirements.
* Dimensional Constraints: Required thickness, width, and length.
* Open Area Percentage: The ratio of holes to solid metal, which is influenced by the hole size and pitch.
By carefully selecting the appropriate ketebalan perforated metal, you can ensure that your filtration system operates at peak efficiency while minimizing the risk of mechanical failure. Whether you require thin-gauge precision screens or heavy-duty perforated plates, Kaifil’s engineering expertise is available to guide you through the selection and manufacturing process.
Conclusion: Making Informed Selection Decisions
Selecting the right thickness for perforated metal is a balancing act between mechanical necessity and operational efficiency. By understanding the relationship between thickness, hole diameter, and material properties, engineers can design systems that are both robust and cost-effective.
For those in the process of specifying components, remember that the ketebalan perforated metal is the backbone of the filter's performance. Choosing a thickness that is too light may lead to premature failure under pressure, while choosing a thickness that is excessively heavy may increase costs and weight without providing functional benefits.
Kaifil remains committed to delivering high-performance, customized filtration solutions. We invite you to consult our technical resources and explore our range of Perforated & Expanded Metal products to find the ideal configuration for your specific industrial needs.
