In the realm of industrial engineering and manufacturing, the selection of structural and filtration components is a critical factor in determining the longevity and efficiency of a system. For professionals involved in sourcing perforated metal epping and related components, understanding the technical nuances of metal fabrication is essential. Perforated and expanded metals serve as the backbone for various applications, ranging from simple protective guards to complex filtration support structures in chemical and pharmaceutical processing.
When evaluating Perforated & Expanded Metal for industrial projects, engineers must look beyond basic dimensions. The performance of these materials is dictated by hole geometry, open area percentages, material grade, and the precision of the manufacturing process. This guide provides a technical overview of these materials, focusing on the specifications and selection criteria necessary for high-performance industrial applications.
The Role of Perforated and Expanded Metal in Modern Industry

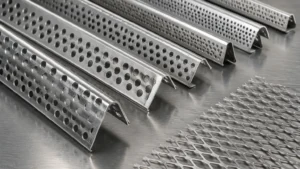

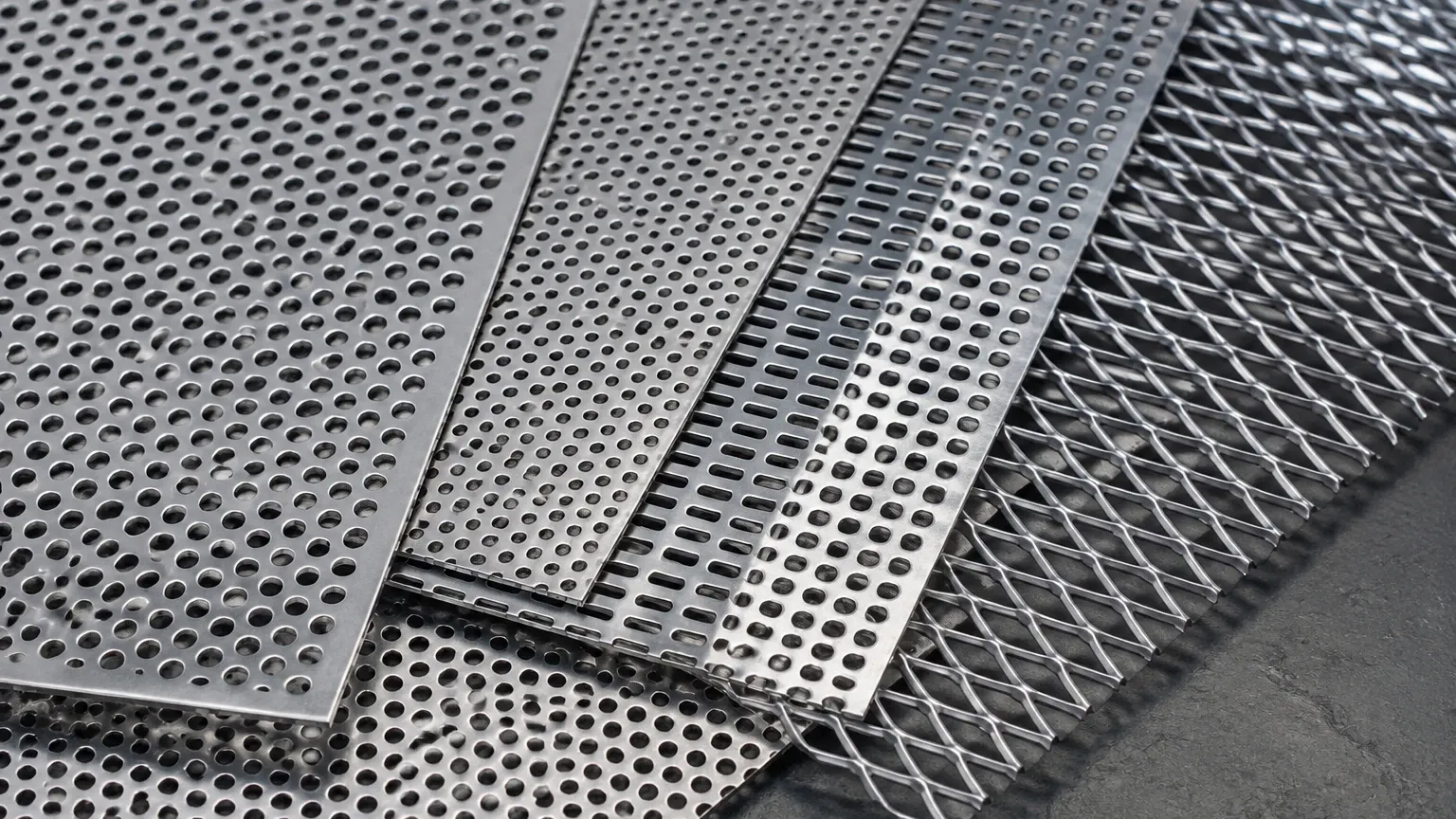

Perforated metal is produced by mechanically punching or laser-cutting a series of holes into a metal sheet. This process allows for high customization in terms of hole shape, size, and distribution. In contrast, expanded metal is created by simultaneously slitting and stretching the material, resulting in a diamond-shaped mesh pattern. Both materials are integral to industrial environments where fluid dynamics, structural integrity, and material separation are required.
In industrial hubs where perforated metal epping is specified, the demand often stems from the need for robust filtration solutions. Perforated sheets are frequently used as the primary support for finer wire mesh filters. In high-pressure hydraulic systems or large-scale water treatment plants, the perforated core provides the mechanical strength necessary to prevent the mesh from collapsing under the force of the flow.
Beyond filtration, these materials are utilized for acoustic dampening, heat dissipation, and safety enclosures. The choice between perforated and expanded metal often depends on the specific mechanical requirements of the project. Perforated metal offers more precise control over the open area and hole shape, while expanded metal is often more cost-effective for large-scale structural applications due to the lack of material waste during production.
Technical Specifications: Hole Patterns and Open Area Calculations
The efficiency of a perforated metal sheet is largely defined by its "open area." This is the percentage of the sheet that is occupied by holes versus solid material. For engineers, calculating the open area is vital for determining flow rates and pressure drops in filtration systems.
Hole Patterns
Hole patterns are generally categorized into three types:
1. Staggered: The most common pattern, where holes are offset in subsequent rows. A 60-degree staggered pattern is the industry standard because it provides the highest open area and the most uniform strength.
2. Straight: Holes are aligned in both horizontal and vertical rows. This pattern is often chosen for aesthetic reasons or specific structural requirements, though it generally offers lower mechanical strength than staggered patterns.
3. Specialty Patterns: These include slotted, hexagonal, or square holes, often used for specific separation tasks or architectural features.
Calculating Open Area
For a standard 60-degree staggered round hole pattern, the formula for calculating the open area percentage is:
Open Area % = (D² × 90.69) / R²
Where:
* D = Hole diameter
* R = Center-to-center distance (pitch)
Precision in these calculations ensures that the perforated metal epping components meet the exact flow requirements of the application. Even a small deviation in hole diameter or pitch can significantly alter the performance of a filtration system, leading to unexpected pressure increases or reduced throughput.
Material Selection: Why Stainless Steel Dominates Industrial Filtration
The environment in which the metal will operate dictates the material choice. For most industrial filtration and processing applications, stainless steel is the preferred medium due to its corrosion resistance and mechanical durability.
Grade 304 Stainless Steel
Grade 304 is the most widely used stainless steel for perforated metal. It offers excellent resistance to atmospheric corrosion and is suitable for most food and beverage applications. It is easy to form and weld, making it a versatile choice for custom filter cartridges and support cages.
Grade 316 and 316L Stainless Steel
In more aggressive environments, such as chemical processing or marine applications, Grade 316 is required. The addition of molybdenum enhances its resistance to pitting and crevice corrosion in chloride-rich environments. Grade 316L (low carbon) is preferred for components that require extensive welding, as it minimizes the risk of intergranular corrosion in the heat-affected zone.
Specialized Alloys
For extreme conditions involving high temperatures or highly acidic fluids, specialized alloys like Duplex stainless steel or Monel may be used. These materials provide superior strength and resistance but come at a higher cost. When sourcing perforated metal epping, confirming the material grade with mill test reports (MTRs) is a critical step in quality assurance.
Comparing Perforated Metal and Expanded Metal
While both materials are used for similar functions, their manufacturing processes result in different physical properties that suit different applications.
Structural Differences
Perforated metal maintains the flatness and integrity of the original sheet. It is easier to fabricate into cylindrical shapes, which is why it is the standard choice for filter cartridge cores. Expanded metal, however, has a three-dimensional texture unless it is "flattened" through a secondary rolling process. The raised edges of standard expanded metal provide excellent grip for walkways but can create turbulence in fluid flow applications.
Material Efficiency
Expanded metal is often considered a "green" product because the process of slitting and stretching does not produce scrap. In contrast, perforating involves punching out metal slugs, which must then be recycled. For projects where cost is the primary driver and high precision in hole shape is not required, expanded metal is a viable alternative.
Application Suitability
* Perforated Metal: Best for precision filtration, high-pressure support, and applications requiring a specific open area percentage.
* Expanded Metal: Ideal for safety guards, ventilation grilles, and large-scale structural panels where weight reduction is necessary without compromising strength.
Critical Applications in Chemical and Food Processing
In the chemical and food industries, the requirements for perforated metal epping are governed by strict hygiene and safety standards. The surface finish of the metal is just as important as the hole pattern.
Filtration and Separation
In chemical reactors, perforated metal plates are used to support catalyst beds. These plates must withstand high temperatures and corrosive chemicals while maintaining a precise open area to ensure uniform fluid distribution. In food processing, perforated screens are used for dewatering, sorting, and grading. These screens must be free of burrs and sharp edges to prevent food particles from becoming trapped, which could lead to bacterial growth.
Sanitary Requirements
For food and pharmaceutical applications, stainless steel perforated metal often undergoes electropolishing. This process removes a thin layer of material from the surface, resulting in a mirror-like finish that is extremely easy to clean and sanitize. This is a crucial consideration for engineers designing systems that must comply with FDA or EHEDG standards.
Quality Standards and Procurement Considerations
When procuring perforated metal epping, it is essential to establish clear quality benchmarks. Industrial filters and structural components must meet tight tolerances to ensure they fit correctly within larger assemblies.
Tolerances and Flatness
Standard industry tolerances for perforated metal usually cover sheet size, hole diameter, and pitch. However, for precision filtration, tighter tolerances may be required. Furthermore, the perforating process can introduce internal stresses into the metal, causing it to curl or bow. Specifying a requirement for "leveling" ensures the final product is flat and ready for fabrication.
Burr Levels and Edge Conditions
In many applications, the presence of burrs (small fragments of metal remaining after punching) can be detrimental. In filtration, burrs can break off and contaminate the filtrate. In architectural applications, they pose a safety risk. Engineers should specify whether the material needs to be deburred or if a certain level of burr is acceptable. Additionally, the "margins" (the unperforated area around the edges of the sheet) must be clearly defined to facilitate welding and installation.
Documentation and Traceability
For B2B procurement, traceability is non-negotiable. Suppliers should provide documentation that includes material certifications, dimensional inspection reports, and, where applicable, pressure test results for finished filter components. This level of transparency is vital for risk management in industries like aerospace, pharmaceuticals, and oil and gas.
Customization and OEM Solutions for Specialized Projects
No two industrial applications are identical, and often, off-the-shelf perforated sheets do not meet the specific needs of a project. This is where custom manufacturing and OEM capabilities become invaluable. Customization allows for the optimization of every aspect of the metal component.
Custom Hole Geometries
While round holes are standard, certain filtration tasks require slotted or square holes to optimize the separation of non-spherical particles. Custom tooling can be developed to produce unique patterns that match the specific characteristics of the media being filtered.
Fabrication and Assembly
Sourcing perforated metal is often just the first step. Many projects require the metal to be rolled into cylinders, welded, and fitted with end caps or flanges. Working with a manufacturer that offers end-to-end solutions—from initial perforation to final assembly—reduces the complexity of the supply chain and ensures better quality control across the entire production process.
Engineering Support
Technical professionals benefit from working with suppliers who provide engineering support. This includes assistance with open area calculations, material selection advice based on chemical compatibility charts, and prototyping services. For complex projects involving perforated metal epping, this collaborative approach helps identify potential issues, such as material fatigue or flow restrictions, before full-scale production begins.
Conclusion
Selecting the right Perforated & Expanded Metal is a technical process that requires a deep understanding of material science, fluid dynamics, and manufacturing precision. Whether the application is a high-pressure hydraulic filter in a chemical plant or a protective screen in a food processing facility, the quality of the perforated component directly impacts the system's overall performance.
By focusing on precise specifications—such as hole patterns, material grades like 316L stainless steel, and strict quality control standards—engineers and purchasing teams can ensure they receive components that meet the rigorous demands of their industries. As industrial requirements continue to evolve, the need for customized, high-performance perforated metal solutions remains a constant in the pursuit of operational excellence.
