Woven Wire Fence Roll: Technical Guide for Industrial Mesh Selection
In industrial environments, the term "woven wire fence roll" often extends beyond simple perimeter security. For engineers and procurement specialists in sectors such as chemical processing, food and beverage, and pharmaceuticals, these rolls represent a versatile category of structural Woven Wire Mesh used for machine guarding, filtration support, safety partitions, and high-durability screening. Selecting the correct specification requires a deep understanding of metallurgy, weaving patterns, and mechanical properties to ensure the mesh withstands the rigors of industrial application.
Unlike standard commercial fencing, industrial-grade woven wire rolls are manufactured with precision tolerances. They are designed to provide not only a physical barrier but also specific open areas for airflow, visibility, or secondary filtration. This guide examines the technical nuances of these products, focusing on how material selection and engineering specifications impact long-term performance.

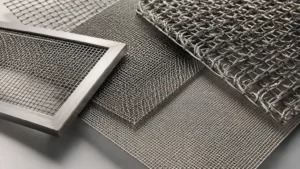

Understanding the Structural Integrity of Woven Wire Mesh Rolls
The performance of a woven wire fence roll is fundamentally determined by its weaving method. While many assume all woven mesh is identical, the way the warp (vertical) and shute (horizontal) wires intersect dictates the roll’s stability, flexibility, and resistance to deformation.
Plain Weave vs. Twill Weave
In a plain weave, each shute wire passes alternately over and under each warp wire. This is the most common construction for industrial rolls because it offers high stability and a consistent aperture size. For heavier-duty "fencing" or guarding applications where thicker wire diameters are required relative to the opening size, a twill weave may be employed. In this configuration, each wire passes over two and under two wires, allowing for a heavier wire to be woven than would be possible in a plain weave of the same mesh count.
The Importance of Wire Tension
In industrial manufacturing, maintaining consistent tension during the weaving process is critical. If the tension is uneven, the roll will suffer from "curling" or "bowing" when unrolled, making installation difficult and compromising the structural integrity of the barrier. High-quality rolls are processed through tension-leveling equipment to ensure they lay flat and maintain square openings across the entire width of the roll.
Material Performance: SS304 vs. SS316L for Industrial Applications
When specifying a woven wire fence roll for an industrial facility, material selection is the primary factor in determining the total cost of ownership. Stainless steel is the industry standard due to its strength-to-weight ratio and resistance to environmental degradation.
Grade 304 Stainless Steel
Type 304 is the most widely used material for industrial screening and guarding. It provides excellent resistance to atmospheric corrosion and is suitable for most indoor and outdoor applications where it is not exposed to highly corrosive chemicals or salt spray. It offers a cost-effective solution for safety partitions and machine guards in manufacturing plants.
Grade 316 and 316L Stainless Steel
For environments involving chemical processing, pharmaceutical production, or marine exposure, Grade 316 is the preferred choice. The addition of molybdenum (2-3%) significantly enhances its resistance to pitting and crevice corrosion, particularly in chloride-rich environments. Grade 316L (low carbon) is specifically chosen when the mesh must be welded into frames, as it prevents carbide precipitation that can lead to corrosion at the weld sites.
Specialty Alloys
In extreme cases, such as high-temperature furnace guarding or highly acidic chemical filtration support, alloys like Monel, Inconel, or Hastelloy may be required. These materials ensure that the woven wire roll does not lose its mechanical properties under thermal or chemical stress.
Key Engineering Parameters for Mesh Specification
To ensure a woven wire fence roll meets the requirements of a specific project, engineers must define several critical parameters. Moving beyond "standard" sizes allows for optimized performance in specialized industrial roles.
Mesh Count and Aperture Size
The mesh count refers to the number of openings per linear inch. However, for engineering purposes, the aperture (the clear distance between wires) is often more important. The aperture size determines what can pass through the mesh—whether that is a specific size of debris in a filtration system or a finger in a safety guarding application. The relationship between mesh count, wire diameter, and aperture is defined by the formula:
* Aperture = (1 / Mesh Count) – Wire Diameter
Wire Gauge and Diameter
The diameter of the wire directly influences the tensile strength and weight of the roll. In heavy-duty industrial fencing, larger wire diameters are used to provide impact resistance. Conversely, in filtration support roles, thinner wires may be used to maximize the percentage of open area, thereby reducing pressure drop across the system.
Percentage of Open Area
This is a critical metric for applications involving airflow or fluid dynamics. A higher open area percentage allows for better ventilation and visibility but may reduce the overall structural strength of the roll. Engineers must balance these requirements based on the specific safety or process needs of the installation.
Industrial Applications: Beyond Perimeter Fencing
While the term "fence roll" implies a boundary, the industrial applications for these products are diverse and technically demanding.
Machine Guarding and Safety Enclosures
In automated manufacturing, woven wire rolls are used to create safety perimeters around robotic arms and high-speed machinery. The mesh must be strong enough to contain ejected parts in the event of a mechanical failure while allowing operators to visually monitor the equipment. Stainless steel rolls are preferred here for their durability and lack of need for painting or coating, which can flake off and contaminate the production line.
Filtration Support and Reinforcement
In large-scale liquid filtration systems, a heavy-duty woven wire roll often serves as the "backup" or support layer for finer filter media. This structural layer prevents the fine mesh from collapsing under high differential pressure. The roll must be perfectly uniform to ensure even pressure distribution across the filter element.
Architectural and Facility Partitions
In food processing and pharmaceutical cleanrooms, woven wire partitions are used to separate different production zones while maintaining airflow and light penetration. The hygienic properties of stainless steel make it the only viable material for these environments, as it can be easily sanitized with harsh cleaning agents without rusting.
Evaluating Quality and Avoiding Procurement Risks
Procuring industrial mesh rolls involves navigating a global supply chain where quality can vary significantly. Engineers should be aware of common risks that can lead to premature failure or installation delays.
Inconsistent Wire Chemistry
One of the greatest risks is the use of sub-standard alloys that do not meet the specified chemical composition for SS304 or SS316. This often results in "tea staining" or rapid corrosion in environments where the material should be stable. Requesting Material Test Reports (MTRs) is a standard requirement for industrial-grade procurement to verify the elemental makeup of the wire.
Dimensional Instability
If the weaving loom is not properly calibrated, the mesh count can vary across the length of the roll. In filtration applications, this leads to bypass or inconsistent flow rates. For safety guarding, it can result in weak points in the barrier. Buyers should confirm that the manufacturer uses automated optical inspection (AOI) or rigorous manual sampling to ensure dimensional accuracy.
Edge Treatment and Roll Finishing
Industrial rolls can be supplied with "raw" edges or finished edges. For rolls intended to be cut and framed on-site, a raw edge is standard. However, for applications where the mesh will be handled frequently, a finished or "selvage" edge may be necessary to prevent unraveling and protect personnel from sharp wire ends.
Installation and Handling Guidelines for Industrial Mesh Rolls
Proper handling of a woven wire fence roll is essential to maintain its technical properties from the warehouse to the final installation.
1. Storage: Rolls should be stored horizontally in a dry environment. Storing them upright on their ends can cause the edges to deform under the weight of the roll, leading to alignment issues during installation.
2. Cutting: High-tensile stainless steel wire requires specialized cutting tools. For thinner gauges, industrial shears are sufficient, but for heavy-duty fencing rolls, abrasive saws or plasma cutters may be required to ensure a clean edge without distorting the weave.
3. Tensioning: When installing the mesh as a partition or guard, it must be properly tensioned within a frame. Over-tensioning can lead to wire fatigue and breakage at the attachment points, while under-tensioning results in sagging and reduced impact resistance.
4. Cleaning: Stainless steel mesh is low-maintenance but not "no-maintenance." Periodic cleaning to remove accumulated dust or chemical residues will prevent the breakdown of the passive chromium oxide layer that protects the steel from corrosion.
Conclusion: Selecting the Right Solution
A woven wire fence roll is a sophisticated engineering component that requires careful specification. Whether it is being used for high-pressure filtration support or as a safety barrier in a chemical plant, the choice of material, weave pattern, and wire diameter will dictate its success in the field. By focusing on technical data—such as aperture size, tensile strength, and alloy grade—purchasing teams and engineers can ensure they receive a product that provides long-term reliability and safety.
For those requiring specific configurations, working with a manufacturer that offers customization in mesh count and roll dimensions is essential. Confirming the intended application’s environmental stressors, such as chemical exposure or mechanical impact, allows for a selection that balances performance with cost-efficiency.
